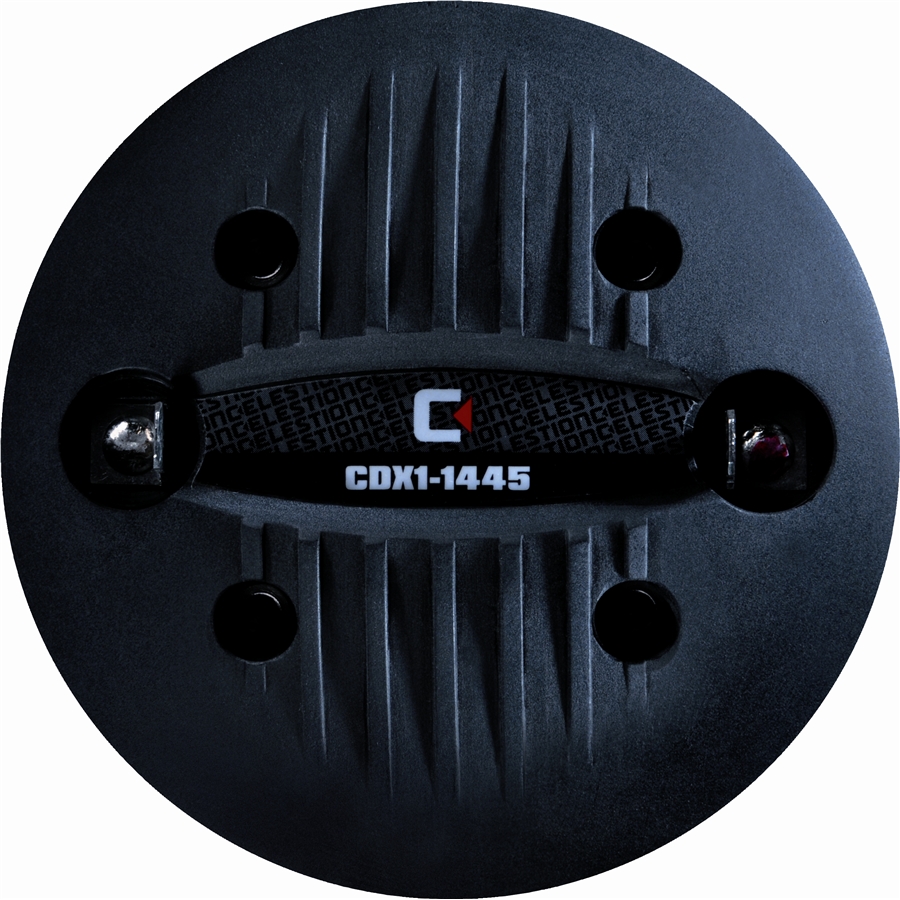

Celestion CDX1-1445 20W 16ohm HF Ferrite

Celestion - CDX1-1445 20W 16ohm - HF Compression Driver - Ferrite

Driver a compressione con magnete in ferrite, uscita da 1", potenza 20Watt, impedenza 16ohm,

diaframma in PETP (polietilene tereftalato), fissaggio con viti (bolt).

Caratteristiche

- 1" exit lightweight and compact ferrite magnet compression driver with

- 1.4" copper clad aluminium voice coil

- 20Wrms power handling (AES standard) and 106dB sensitivity

- One piece PETP diaphragm and surround

- Finite Element Analysis (FEA) techniques used to optimise both magnetic and acoustic design

- Suitable for 2-way and 3-way systems

Specifiche Generali

Power rating(1): 20Wrms

Continuous power rating(2): 40W

Nominal impedance: 8/16ohm

Frequency range: 1500-20,000Hz

Sensitivity(3): 106dB

Recommended min. crossover (12dB/oct): 2200Hz

Voice coil diameter: 35mm/1.4in

Voice coil material: Copper clad aluminium

Magnet type: Ferrite

Diaphragm material: PETP film

Surround material: PETP film

Informazioni di Montaggio

Width: 90mm/3.54in

Depth: 46.5mm/1.83in

Weight: 1kg/2.2lb

Fitting: Flange (4 x M6 holes on 76mm/3in PCD)

Throat exit: 25mm/1in

Trombe Compatibili

H1-9040P, H1-7050 "No Bell"

Note

(1)Tested for two hours on plane wave tube using continuous band-limited pink noise as per AES standard. Power calculated on minimum impedance.

(2)Continuous Power Handling is defined as 3dB greater than the AES rating.

(3)Measured on axis at 1W/1m, using typical horn, in 2 anechoic environment.
