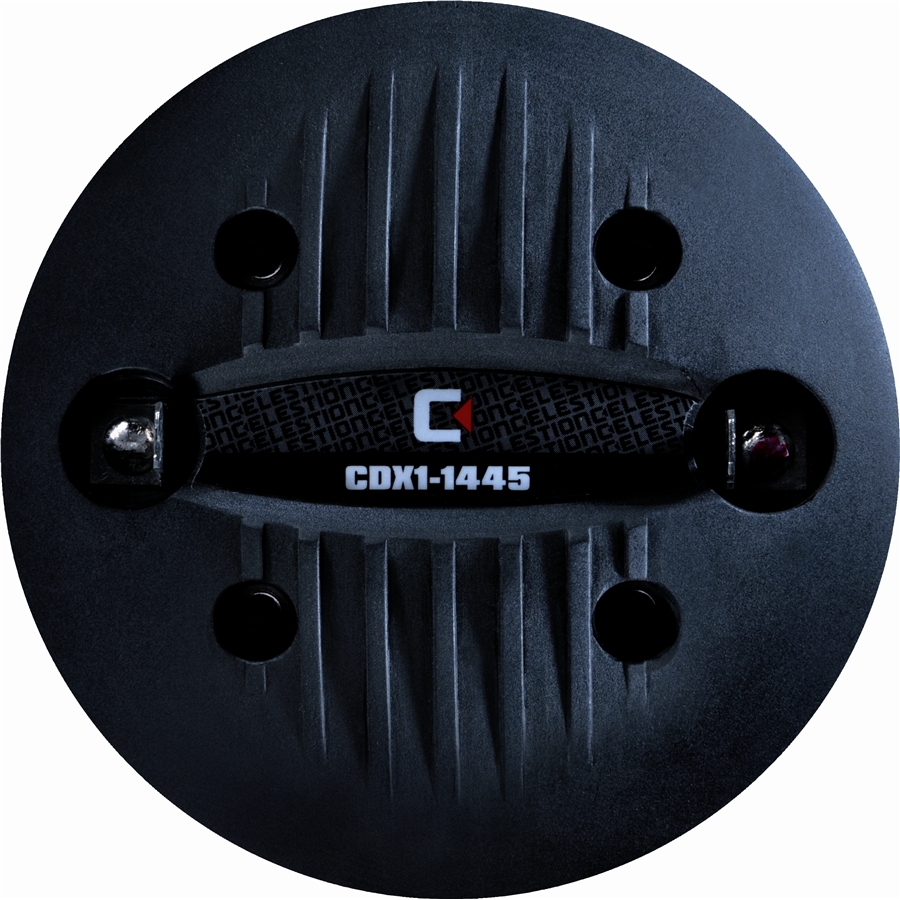

Celestion CDX1-1445 20W 8ohm HF Ferrite

Celestion - CDX1-1445 20W 8ohm - HF Compression Driver - Ferrite

Driver a compressione con magnete in ferrite, uscita da 1", potenza 20Watt, impedenza 8ohm, diaframma in PETP (polietilene tereftalato), fissaggio con viti (bolt).

Voglia di audio Fai da Te? Per il progetto di un diffusore PA 10" compatto 2-vie, clicca qui

Design curato, collaudato e messo a disposizione direttamente da Celestion

Caratteristiche

- 1" exit lightweight and compact ferrite magnet compression driver with

- 1.4" copper clad aluminium voice coil

- 20Wrms power handling (AES standard) and 106dB sensitivity

- One piece PETP diaphragm and surround

- Finite Element Analysis (FEA) techniques used to optimise both magnetic and acoustic design

- Suitable for 2-way and 3-way systems

Specifiche Generali

Power rating(1): 20Wrms

Continuous power rating(2): 40W

Nominal impedance: 8/16ohm

Frequency range: 1500-20,000Hz

Sensitivity(3): 106dB

Recommended min. crossover (12dB/oct): 2200Hz

Voice coil diameter: 35mm/1.4in

Voice coil material: Copper clad aluminium

Magnet type: Ferrite

Diaphragm material: PETP film

Surround material: PETP film

Informazioni di Montaggio

Width: 90mm/3.54in

Depth: 46.5mm/1.83in

Weight: 1kg/2.2lb

Fitting: Flange (4 x M6 holes on 76mm/3in PCD)

Throat exit: 25mm/1in

Trombe Compatibili

H1-9040P, H1-7050 "No Bell"

Note

(1)Tested for two hours on plane wave tube using continuous band-limited pink noise as per AES standard. Power calculated on minimum impedance.

(2)Continuous Power Handling is defined as 3dB greater than the AES rating.

(3)Measured on axis at 1W/1m, using typical horn, in 2 anechoic environment.
