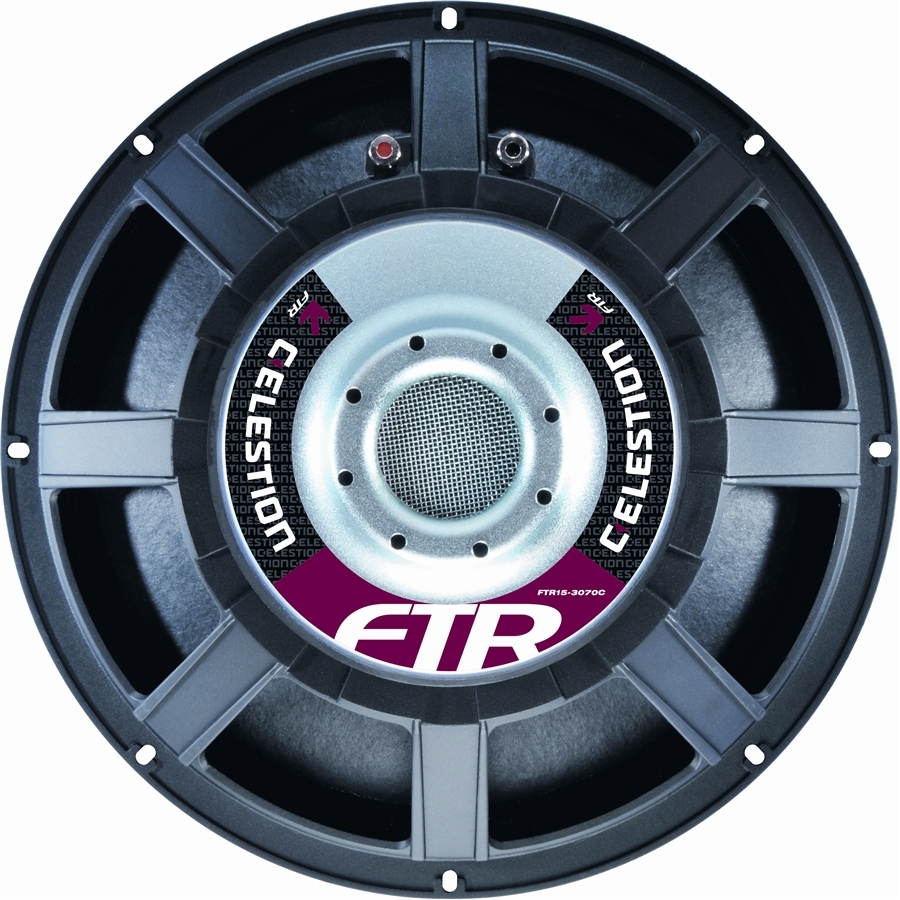

Celestion FTR15-3070C 400W 8ohm LF Ferrite

Celestion - FTR15-3070C 400W 8ohm - LF Die Cast Chassis Loudspeaker - Ferrite

Altoparlante da 15" con chassis in fusione d'alluminio, magnete in ferrite, bobina da 3", potenza 400Watt, impedenza 8ohm

Caratteristiche

- 15" ferrite woofer provides 400Wrms power handling (AES Standard) and 99dB sensitivity

- 3" high temperature Inside/Outside voice coil efficiently dissipates heat, preventing sensitivity loss through thermal compression

- FlexirolTM surround for greater excursion control

- Saturated gap technology for lower harmonic distortion

- Low frequency response, down to 40Hz

- Smart chassis design minimises acoustic distortion

Specifiche Generali

Nominal diameter: 381mm/15in

Power rating(1): 400Wrms

Continuous power rating(2): 800W

EIA power rating(3): 550W

Nominal impedance: 8ohm

Sensitivity(4): 99dB

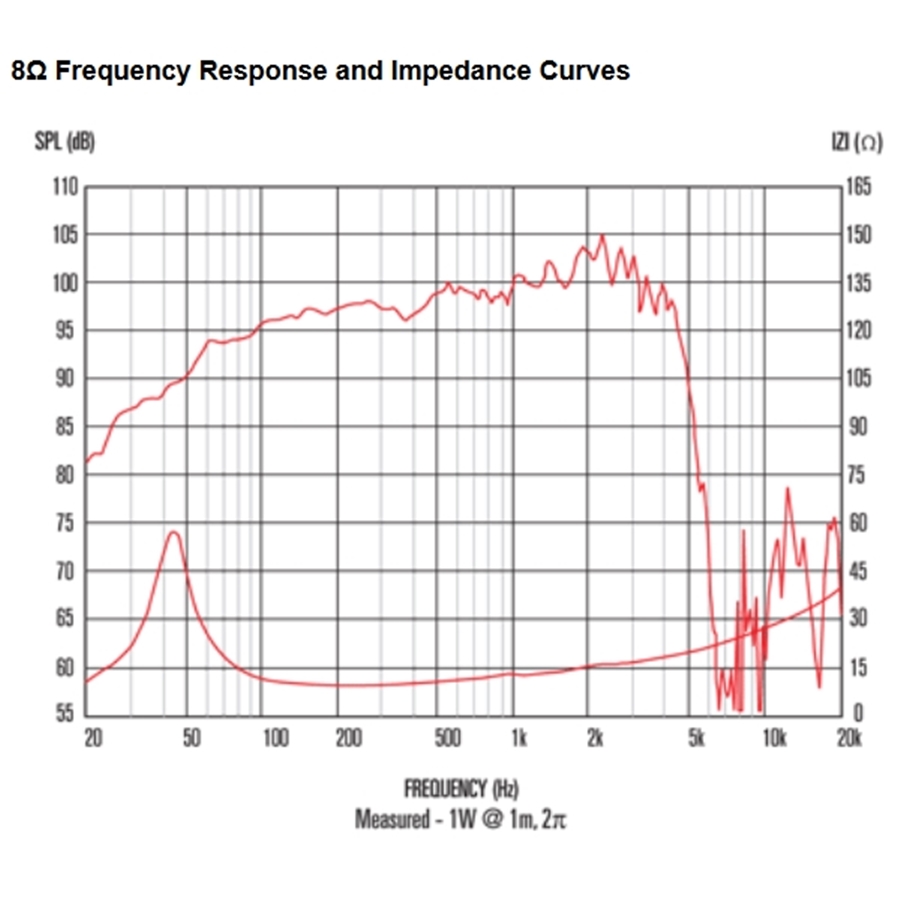

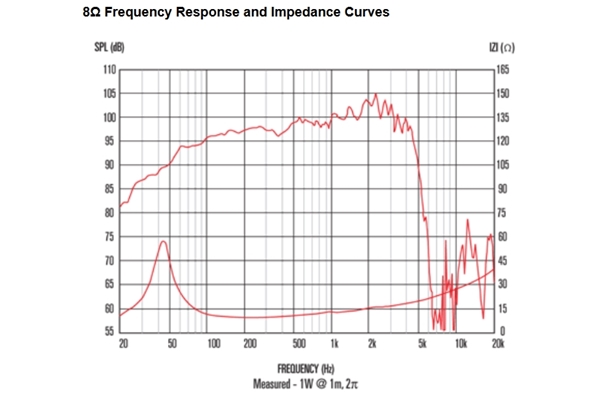

Frequency range: 40-4000Hz

Voice coil diameter: 75mm/3in

Chassis type: Cast Aluminium

Magnet type: Ferrite

Magnet weight: 2.3kg/81oz

Coil material: Round copper

Former material: Glass fibre

Cone material: Glass loaded paper with weather-resistant impregnation

Surround material: Cloth-sealed

Suspension: Single

Xmax(5): 3mm/0.12in

Gap depth: 10mm/0.39in

Voice coil winding width: 16mm/0.63in

Parametri di Thiele-Small

D: 0.33m/12.99in

Fs: 40Hz

Mms: 84.15g/2.97oz

Qms: 7.10

Qes: 0.38

Mmd: 70.00g/2.47oz

Qts: 0.36

Re: 6.50ohm

Vas: 208.0lt/7.34ft3

BI: 18.70Tm

Cms: 0.20mm/N

Rms: 2.86kg/s

Le (at 1kHz): 0.59mH

Informazioni di Montaggio

Overall diameter: 385mm/15.16in

Overall depth: 158mm/6.22in

Cut-out diameter: 351mm/13.82in

Mounting slot dimensions: 10mm x 7mm/0.39in x 0.27in

Number of mounting slots: 8

Mounting PCD range: 365-375mm/14.37-14.76in

Unit weight: 6.3kg/13.8lb

Note

(1)Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.

(2)Continuous Power Handling is defined as 3dB greater than the AES rating.

(3)Tested as per the EIA-426-A standard.

(4)Measured on axis at 1W, 1m in 2pi anechoic environment.

(5)Xmax derived from: (voice coil winding width-gap depth)/2.

(6)Small signal parameters measured after unit subjected to pre-conditioning signal.
