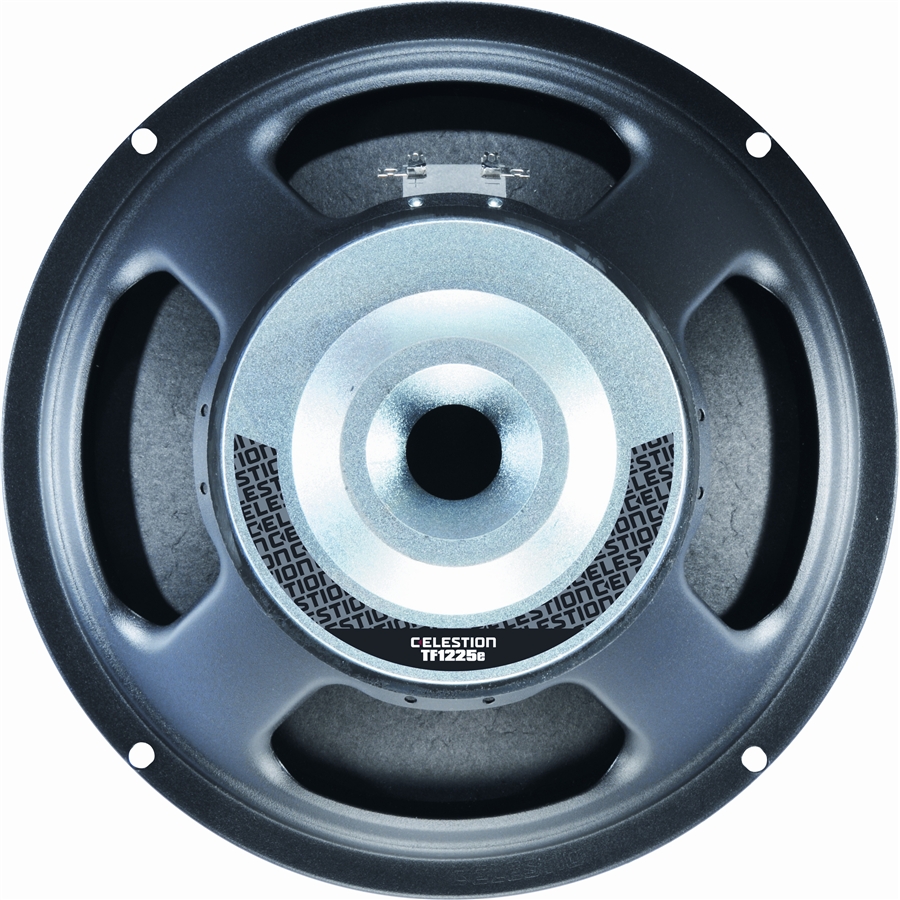

Celestion TF1225e 300W 8ohm LF Ferrite

Celestion - TF1225e 300W 8ohm - LF Pressed Steel Chassis Loudspeaker - Ferrite

Altoparlante da 12" con chassis in acciaio stampato, magnete in ferrite, bobina da 2.5", potenza 300Watt, impedenza 8ohm

Caratteristiche

- 12" Bass and mid-range driver with extended low frequency response

- 2.5" edgewound voice coil provides 96dB sensitivity and 300Wrms (AES standard) power handling

- Kevlar-loaded cone with sealed surround and damping for reduced distortion

- Double roll surround for greater excursion control

- Suitable for use in 2-way and compact 3-way systems

Specifiche Generali

Nominal diameter: 305mm/12in

Power rating(1): 300Wrms

Continuous power rating(2): 600W

EIA power rating(3): 450W

Nominal impedance: 8ohm

Sensitivity(4): 96dB

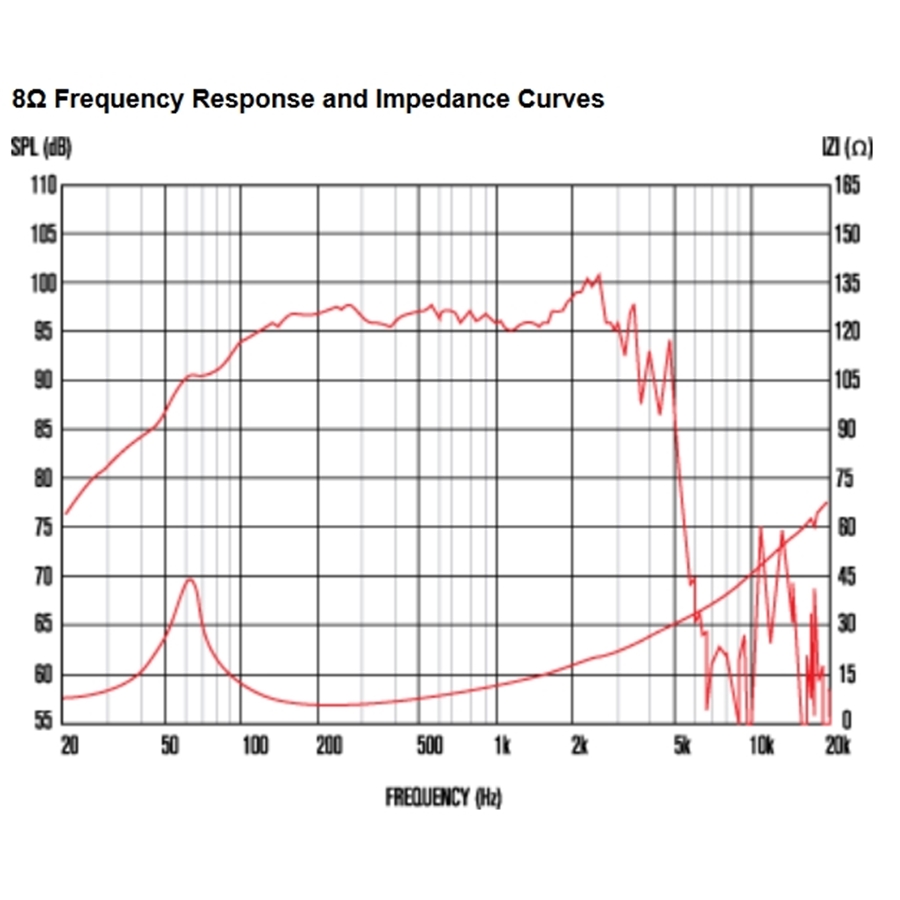

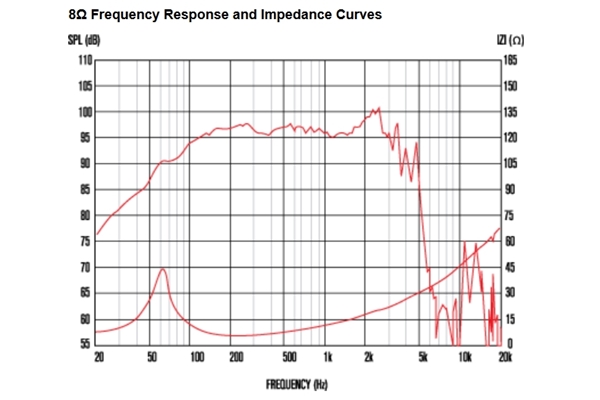

Frequency range: 50-3000Hz

Voice coil diameter: 64mm/2.5in

Chassis type: Pressed steel

Magnet type: Ferrite

Magnet weight: 1.4kg/50oz

Coil material: Edgewound copper

Former material: Polyimide

Cone material: Kevlar loaded paper

Surround material: Cloth-sealed

Suspension: Single

Xmax(5): 3.5mm/0.14in

Gap depth: 8mm/0.31in

Voice coil winding width: 14.5mm/0.57in

Parametri di Thiele-Small

D: 0.26m/10.24in

Fs: 61.2Hz

Mms: 53.24g/1.88oz

Qms: 4.80

Qes: 0.44

Mmd: 46.31g/1.63oz

Qts: 0.40

Re: 5.07ohm

Vas: 50.6lt/1.79ft3

BI: 15.41Tm

Cms: 0.13mm/N

Rms: 4.27kg/s

Le (at 1kHz): 1.1mH

Informazioni di Montaggio

Overall diameter: 309mm/12.17in

Overall depth: 139mm/5.47in

Cut-out diameter: 283mm/11.14in

Mounting slot dimensions: Ø7.9mm/0.31in

Number of mounting slots: 4

Mounting PCD range: 297mm/11.69in

Unit weight: 4.4kg/9.7lb

Note

(1)Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.

(2)Continuous Power Handling is defined as 3dB greater than the AES rating.

(3)Tested as per the EIA-426-A standard.

(4)Measured on axis at 1W, 1m in 2pi anechoic environment.

(5)Xmax derived from: (voice coil winding width-gap depth)/2.

(6)Small signal parameters measured after unit subjected to pre-conditioning signal.
